Custom Wheels
New rims to fit 37"x12.5"x16.5" tires
for full size 1/2 ton GM.
Set of 4 NEW RIMS $350.00 + S&H
|
|
|
|
 |
 |
 |
|

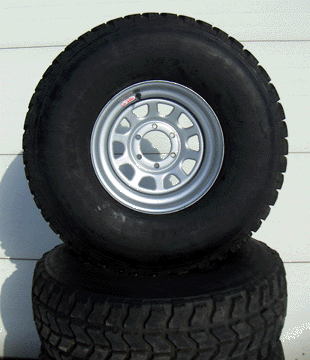

1986 and older GM
6 x 5.5" bolt pattern 4.5"backspacing, 8.25" wide rim RIMS ONLY |

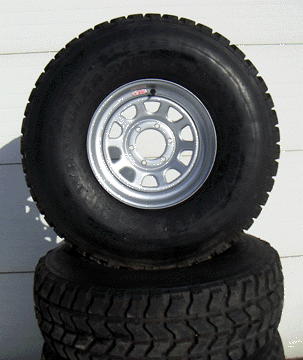

1987 & newer GM
6 x 5.5" bolt pattern 5.5"backspacing, 8.25" wide rim RIMS ONLY |

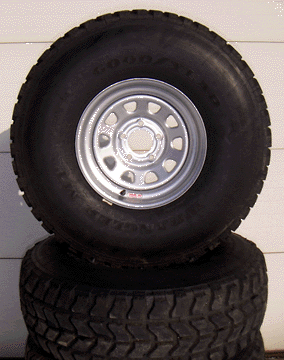

1992 & newer Ford,
5 x 135mm bolt pattern, 4.75" backspacing, 8.25" wide rim LAST SET WITH TIRES $650. + S&H |
| Please note: 8 lug wheels were manufactured by Ford, Chevy & Chrysler that will fit these tires. Find used ones at your local salvage yard. | ||
MILITARY TAKE-OFF TIRES
95% Tread means that the molding line is still showing
80% & better TREAD = U1 60% and better TREAD = U2
Tires have been inspected to the best of our abilities. There may be
small scars or cracking. Tires are priced accordingly.
(cost of freight is additional)
Limited Warrantee: We will replace or refund, at our option, any tire that is found to be defective
due to severe cracking or tears. Freight is not covered.
UPDATED Aug. 20, 2010
|
37x12.5x16.5 Goodyear Wrangler OZ Radials.
|
|
OUT OF STOCK
|
|
Select Tire Lots
|
 |
|
Qty 10 NDCC 1100 x 20 Armstrong Tires
60-80% tread $450 #T48 SOLD |
 |
 |
|
(Two pictures of the same 12 tires.)
These are new Firestone Transport 1 12 ply tires, 11-22.5 tubeless, load range F. Dual capacity 4805 pounds at 75 psi cold. SOLD #T61 $100 each |
|
 |
 |
|
9.50Rx16.5 Goodyear Wrangler
90%+ tread, original M880 tires. minor dry cracks U2 Set of 4 $200 #T13 (29.75"Tx9"W) |
950R16.5 Goodyear Wranglers 4 @80-90% tread Very good condition. #T54 $300 |
715/449-2141 8-5 M-F Central Time
| Please see above info for actual inventory. This table is JUST information | ||||||
| SPECIFICATIONS, WEIGHTS, DIMENSIONS (note: NDCC = Non-Directional Cross Country) | ||||||
| ITEM | Load Rating | Single wt | Qty weight | Qty Dimension | ||
| 1600x20 | 54" tall - 16" treadwidth | W/RIM 500#ea | ||||
| Tire, 1400x20 | 50" tall - 14" treadwidth, 18 ply | 9920 lbs |
225#
|
4 on pallet 940# |
48x48x60
|
|
| Tire, 14.5R20 | 44" tall - 12.5" treadwidth, 4 ply | 7100 lbs |
155#
|
3 on pallet 430# |
48x48x44
|
|
| Tire, 1100x20 | 43" tall - 9" treadwidth, 12 ply | 5920 lbs |
90#
|
6 on pallet 600# |
48x42x60
|
|
| Tire, 900x20 | 40" tall x 8.5 treadwidth, 8 ply | 4000 lbs |
70#
|
5 on pallet 475# |
48x48x42
|
|
| Tire, 900x20 | with rims (single rim wt = 100#) | 4000 lbs |
170#
|
5 on pallet 975# |
48x42x60
|
|
| Tire, Humvee | 36x12.5x16.5 - 10.5 treadwidth, 6 ply | 2850 lbs |
50#
|
5 on pallet 300# |
48x42x60
|
|
| Tire, Humvee | 37x12.5x16.5 - 10.5 treadwidth, 6 ply |
70#
|
4 on pallet 330# |
48x40x44
|
||
Note: The 6 hole measurements were taken off a mounted wheel so may not be precise (vary possibly 1/8")
10 hole budd wheel is same as 5 ton 6x6
6 hole budd wheel is same as 2 1/2 ton 6x6.
